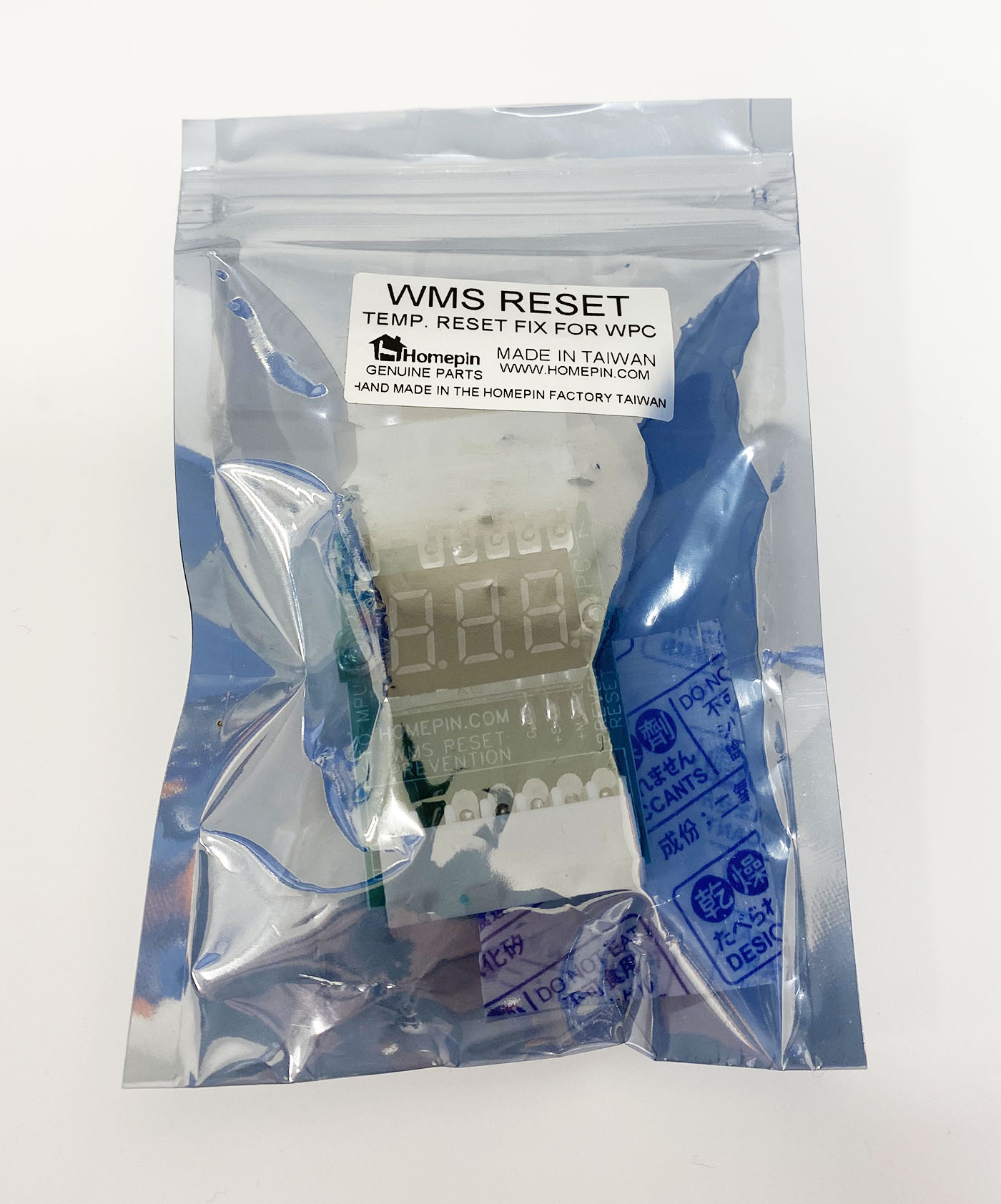

Reset Fix Board WPC/WPC-S/WPC95

The Reset Fix Board prevents the shutdown problems on Bally/Midway/Williams WPC System pinball machines. If your game is resetting to low voltage, then this will fix it. Works for all WPC/WPC-S/WPC-95 pinball machines. * Easy plug and play installation in 5 minutes * No tools needed when installing the board. * Voltage indicator * High Quality product from Homepin * To install you simply unplug J210 on the MPU and insert this board inline. Replugging the J210 connector into the top of this board. That’s it! Probably one of the most common problems people experience with the modern Bally/Williams DMD machines are random resets of the game in progress. Sometimes it appears these resets happen at certain times (like when you hit a flipper or during multiball) and you think it may be directly related to that. Most of the time, that’s not the case, although heavy activity like firing certain solenoids might cause a drain which exposes a weakness in the game’s power system When a game suddenly shuts off, goes dark and reboots itself after a few second delay, an MPU board reset has occurred. Unwanted resets occur on WPC pinball machine MPU boards because the Power Driver Boards 5 volt power supply is marginally designed for the many circuits it drives. The Reset Fix Board creates a unique 5 volt power source for the WPC System MPU board and adds a monitor LEDs to your Power Driver Board. WPC series MPU boards have a watchdog circuit that shuts down the board if the 5 volt power supply drops below a cutoff voltage (~ 4.7 volts). This happens more frequently as game circuitry ages, and the machine unexpectedly turns off and ends any active games. Reference: Bally/Midway Attack from Mars 1995 Bally/Midway Black Rose 1992 Bally/Midway Cactus Canyon 1998 Bally/Midway Cirqus Voltaire 1997 Bally/Midway Corvette 1994 Bally/Midway Creature from the Black Lagoon 1992 Bally/Midway Doctor Who 1992 Bally/Midway Gilligan’s Island 1991 Bally/Midway Harley-Davidson 1991 Bally/Midway Indianapolis 500 1995 Bally/Midaway Judge Dredd 1993 Bally/Midway NBA Fastbreak 1997 Bally/Midway Popeye Saves the Earth 1994 Bally/Midway Safe Cracker 1996 Bally/Midway Scared Stiff 1996 Bally/Midway The Adams Family 1992 Bally/Midway The Addams Family Gold 1994 Bally/Midway The Champion Pub 1998 Bally/Midway The Party Zone 1991 Bally/Midway The Shadow 1994 Bally/Midway Theatre of Magic 1995 Bally/Midway Twilight Zone 1993 Bally/Midway WHO Dunnit 1995 Bally/Midway World Cup Soccer 1994 Williams Bride of Pin·Bot 1991 Williams Congo 1995 Williams Demolition Man 1994 Williams Dirty Harry 1995 Williams Dracula 1993 Williams Fish Tales 1992 Williams FunHouse 1990 Williams Hurricane 1991 Williams Indiana Jones 1993 Williams Jack·Bot 1995 Williams Johnny Mnemonic 1995 Williams Junk Yard 1996 Williams Medieval Madness 1997 Williams Monster Bash 1998 Williams No Fear 1995 Williams No Good Gofers 1997 Williams Red & Ted’s Road Show 1994 Williams Star Trek: The Next Generation 1993 Williams Terminator 2: Judgment Day 1991 Williams Tales of the Arabian Nights 1996 Williams The Flintstones 1994 Williams The Getaway II 1992 Williams White Water 1993
